125V 15A Tamper Resistant GFCI Electrical Outlet Self-Test UL943 Standard Grounding Receptacle Unit

Product Categories
Shenzhen Keygma Electrical Manufacturing Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

125V 15A Tamper Resistant GFCI Electrical Outlet Self-Test UL943 Standard Grounding Receptacle Unit

Model Number : KG-15T

Brand Name : Keygma

Place of Origin : Guangdong, China

MOQ : 50

Price : $5.50-6.20

AC Outlets : 2

Rated Current : 15A

Rated Voltage : 125V

Material : Polycarbonate

IP Level : IP44

Grounding Type : GFCI

Wire Count : 3

Flammability Rating : UL943 V0

Dielectric Voltage : 2000V

Trip Level : 5mA ±1mA

Operating Temperature : -35℃～66℃

NEMA Standard : WD-1 & WD-6

Unit Dimensions : 4.57×2.76×1.57 in

Carton Dimensions : 15.4×11×10.2 in

Carton Weight : 8.7kg

Contact Now

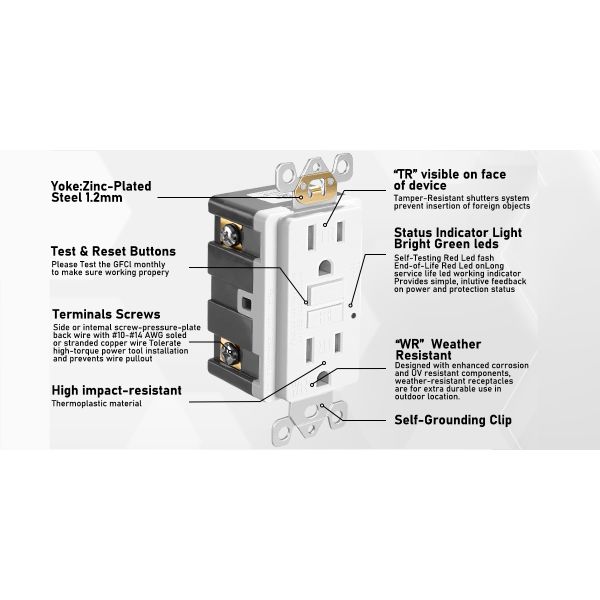

KEYGMA 125V 15A White GFI Tamper-Resistant Wall Outlet
Professional-grade GFCI outlet featuring two AC outlets with tamper-resistant technology and UL943 standard grounding for enhanced electrical safety.
125V 15A Tamper Resistant GFCI Electrical Outlet Self-Test UL943 Standard Grounding Receptacle Unit 125V 15A Tamper Resistant GFCI Electrical Outlet Self-Test UL943 Standard Grounding Receptacle Unit 125V 15A Tamper Resistant GFCI Electrical Outlet Self-Test UL943 Standard Grounding Receptacle Unit 125V 15A Tamper Resistant GFCI Electrical Outlet Self-Test UL943 Standard Grounding Receptacle Unit
Technical Specifications
Amp Rating 15A
Voltage 110V AC (250V Optional)
Pole 2
Wire Configuration 3
Flammability Rating Rated V0 per UL943
Applicable Standards UL498, UL943
Face Material Nylon
Body Material Polycarbonate
Grounding Standard grounding
Dielectric Voltage Withstands 2000V per UL498
Trip Level 5mA plus or minus 1mA
Operating Temperature -35℃ to 66℃
NEMA Standards WD-1 & WD-6
Certifications ETL, CSA
Color Options White, Black, Ivory, Almond or customize according to required pantone number
OEM Services
Logo Printing
Minimum order quantity: 500 pieces. One color logo available for laser engraving or silk screen printing.
Custom Color Box
Minimum order quantity: 1000 pieces. Requires artwork design according to our die cutter specifications.
Packaging Information
Package Dimension Carton Size Pack Options Quantity per Carton Weight per Carton
4.57*2.76*1.57 in
11.6*7.0*4.0 cm		 15.4*11*10.2 in
39*28*26 cm		 1 Pack 50 pieces 8.7 kg / 19.2 lb
125V 15A Tamper Resistant GFCI Electrical Outlet Self-Test UL943 Standard Grounding Receptacle Unit 125V 15A Tamper Resistant GFCI Electrical Outlet Self-Test UL943 Standard Grounding Receptacle Unit 125V 15A Tamper Resistant GFCI Electrical Outlet Self-Test UL943 Standard Grounding Receptacle Unit
